Environmental protection industry - solid and liquid waste rotary kiln treatment system Cooling fan

Cooling fans achieve temperature control through forced ventilation or heat exchange to ensure stable system operation. They are mainly used in the following key areas:

1. Rotary kiln body cooling
Cooling fans are used to lower the kiln surface temperature and prevent refractory failure due to high temperatures (e.g., red kiln phenomenon). They are typically located in high-temperature areas such as the tyres and rollers, maintaining the kiln temperature at ≤400°C through air cooling.

2. Secondary combustion chamber flue gas cooling
After passing through the waste heat boiler, the high-temperature flue gas (900-1100°C) still needs to be further cooled to 200-240°C. The cooling fan is combined with a quench tower or dry cooler to achieve rapid cooling to prevent dioxin resynthesis.

3. Transmission system heat dissipation
Support roller bearings: Forced air cooling reduces bearing temperature (normal temperature rise ≤ 35°C) and prevents carbonisation of lubricating oil.

Reducer: Dissipate heat through cooling coils or external fans to maintain the gear oil temperature below 60°C.

4. Exhaust gas treatment system
The flue gas needs to be cooled to 120-150℃ at the inlet of the bag filter. The cooling fan achieves this through air-flue gas heat exchange, while preventing the filter bags from being damaged by high temperatures.

Product Structure

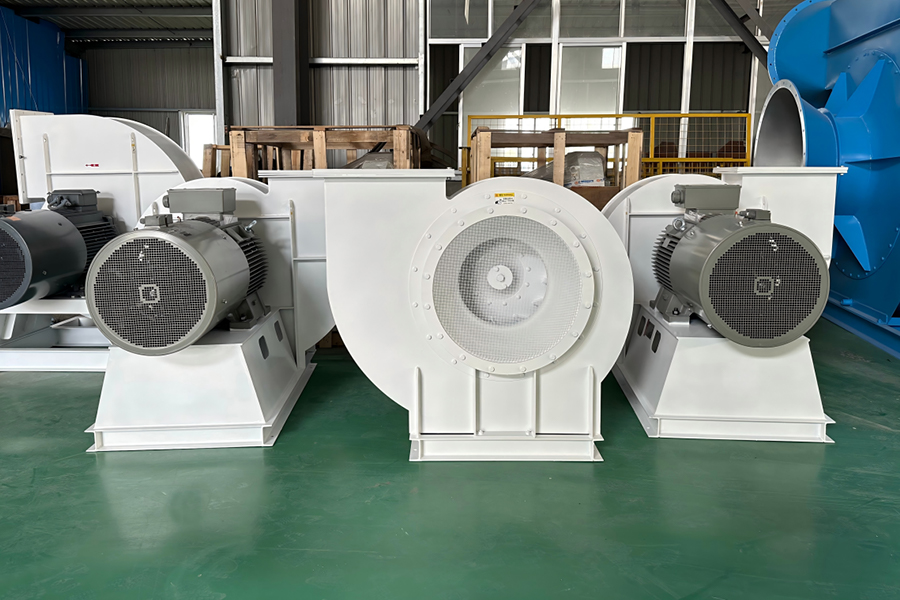

Actual picture

Q: What is the monthly supply capacity?

50-100 units

Q: Do you offer quality assurance?

During the warranty period, if there are any quality issues with the product, please contact us for replacement

Q: Can samples be ordered?

Yes

Q: How is your after-sales service?

Monday-Sunday，7:30-18:00，Long-time online after-sales service is worry-free

Q: How can I keep up with the product progress if I don't go to your company?

After placing an order, we will report the production progress regularly

Q: What information do I need to provide to get an accurate quotation?

The operating conditions for the gas to be delivered include flow rate (m3/h), total pressure (Pa), temperature (℃), gas density (kg/m3), and the altitude of the usage location (m); the material of the fan; the voltage, frequency, protection level, explosion-proof level, and whether the motor is variable frequency or not.

Q: Can your packaging ensure the safety of the product?

We wrap the inlet and outlet of the fan, as well as the motor, with stretch film and then secure the fan in a wooden box, which can fully protect the product during transportation and handling.

Q: How long is the warranty period for the product?

1 year
