Metallurgical Industry - Smelting Furnace Exhaust Fan

Smoke exhaust fans are mainly used to extract high-temperature flue gas and harmful gases (such as SO₂ and FH₂) generated during the smelting process under negative pressure, ensuring a clean furnace environment and maintaining process stability.

1. Core Role

Efficient smoke exhaust

The flue gas (containing particulate matter, heavy metals, etc.) generated by smelting is quickly discharged from the furnace through negative pressure suction to prevent the accumulation of harmful substances that affect the metal quality.

Maintain process stability

Accurately control the air volume and pressure to prevent flue gas residue from causing slagging or incomplete combustion in the furnace, while reducing heat energy loss.

Environmental compliance

Cooperate with dust removal equipment (such as bag dust collector) to achieve flue gas purification and meet emission standards.

2. Technical Features

High temperature resistant design: The impeller and casing must be made of heat-resistant materials to adapt to high temperature environments above 260°C.

Customized parameters: Too much air volume will extract too much heat energy, while too little will cause residual waste gas. It needs to be precisely matched to the capacity of the melting furnace.

3. Typical Application Scenarios

Aluminum casting furnace: The exhaust fan works in conjunction with the combustion-supporting fan and cooling fan to ensure a balance between aluminum bar quality and energy consumption.

Metal smelting: Use bag filters to treat high-temperature flue gas containing heavy metals to achieve ultra-low emissions.

Product Structure

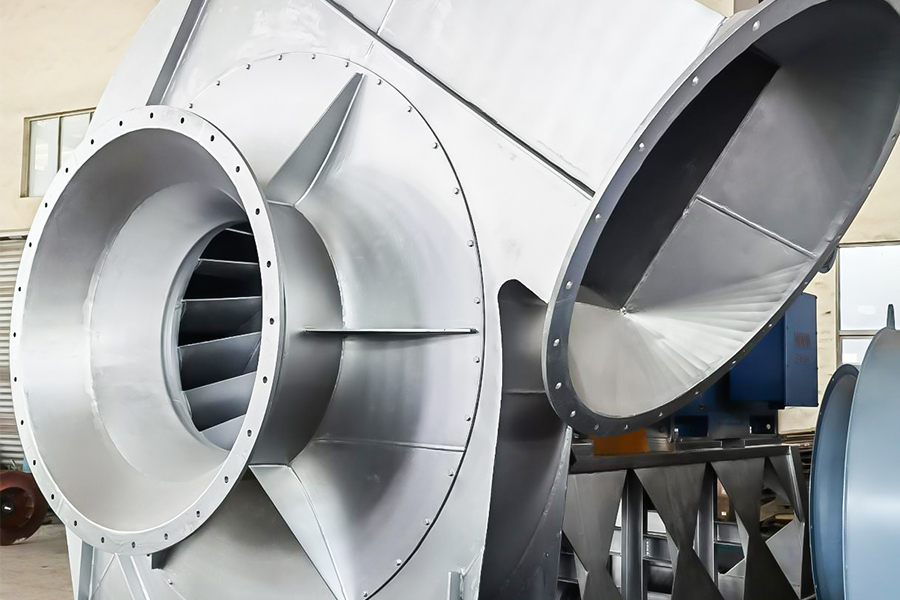

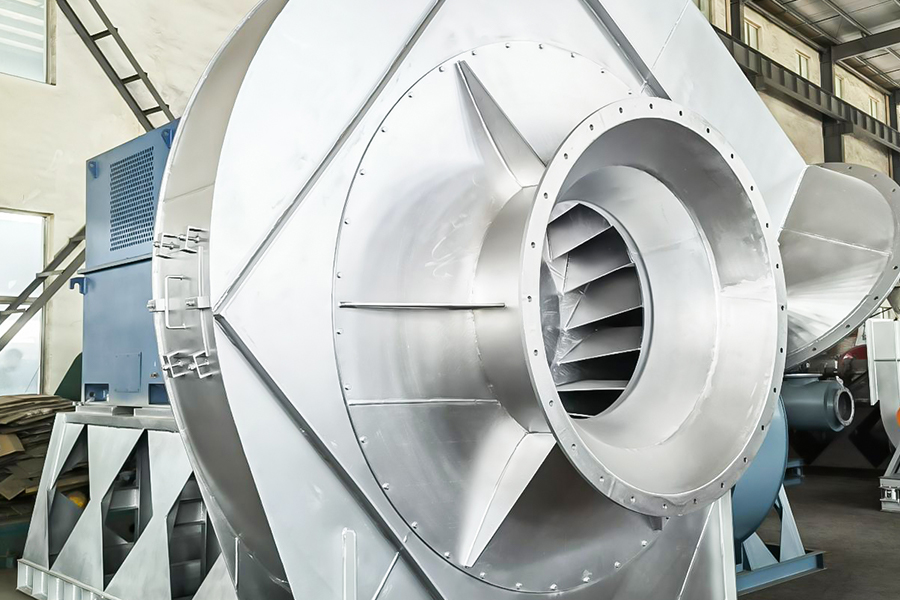

Actual picture

Q: What is the monthly supply capacity?

50-100 units

Q: Do you offer quality assurance?

During the warranty period, if there are any quality issues with the product, please contact us for replacement

Q: Can samples be ordered?

Yes

Q: How is your after-sales service?

Monday-Sunday，7:30-18:00，Long-time online after-sales service is worry-free

Q: How can I keep up with the product progress if I don't go to your company?

After placing an order, we will report the production progress regularly

Q: What information do I need to provide to get an accurate quotation?

The operating conditions for the gas to be delivered include flow rate (m3/h), total pressure (Pa), temperature (℃), gas density (kg/m3), and the altitude of the usage location (m); the material of the fan; the voltage, frequency, protection level, explosion-proof level, and whether the motor is variable frequency or not.

Q: Can your packaging ensure the safety of the product?

We wrap the inlet and outlet of the fan, as well as the motor, with stretch film and then secure the fan in a wooden box, which can fully protect the product during transportation and handling.

Q: How long is the warranty period for the product?

1 year
