8-09 Series, 9-12 Series, 9-19 Series, 9-26 Series High-Pressure Centrifugal Blowers

8-09 Series

Air volume range: 600-5500 m³/h, air pressure: 10,000-20,000 Pa, power: 7.5-75 kW, medium temperature: 20°C, medium density: 1.2 kg/m³.

The 8-09 series high-pressure centrifugal blowers can be used to supply air to cupolas, melting furnaces, forges, and burners. They can also be used in other applications if the air intake conditions are comparable and the performance is suitable. The conveying medium should be non-corrosive, free of sticky substances, and contain no more than 150 mg/m³ of particulate matter.

Product Structure
Type A Direct motor connection, no bracket	Type A Direct motor connection	Type C Pulley drive	Type D Coupling drive

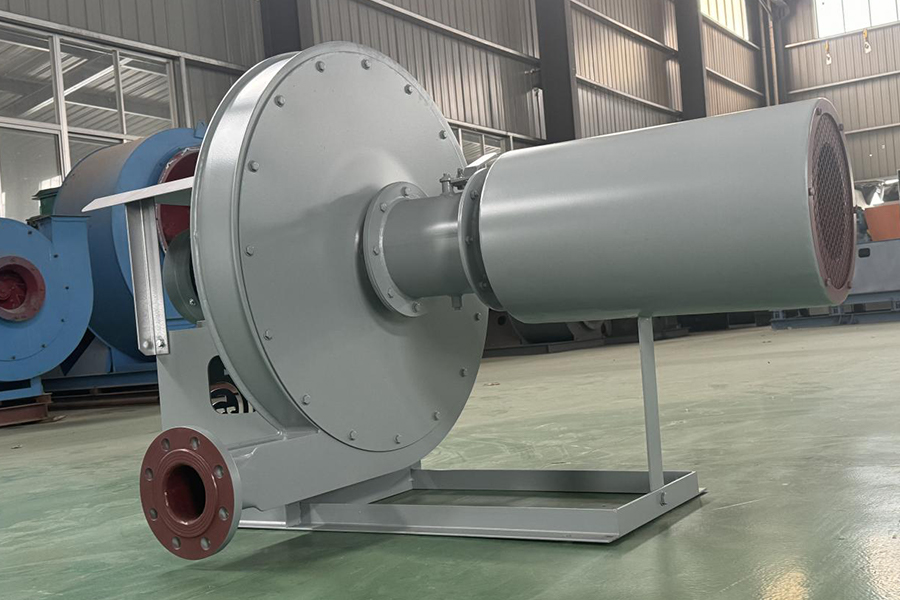

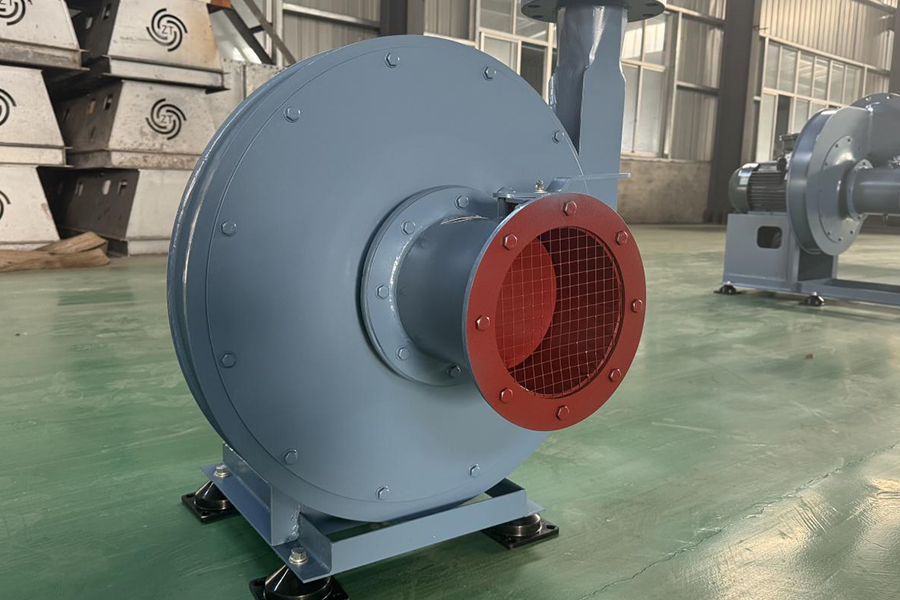

Actual picture

9-12 Series

Air volume range: 1700-9000 m³/h, air pressure: 10,000-20,000 Pa, power: 15-90 kW, medium temperature: 20°C, medium density: 1.2 kg/m³.

Like the 8-09 series, the 9-12 series high-pressure centrifugal blowers are primarily used for supplying air to various cupolas, melting furnaces, and forges. They can also be used to supply air to burners. They can also be used in other applications if the air intake conditions are comparable and the performance is suitable. The conveying medium should be non-corrosive, free of sticky substances, and have a particle content of no more than 150 mg/m³.

Product Structure
Type A Direct motor connection, no bracket	Type A Direct motor connection	Type C Pulley drive	Type D Coupling drive

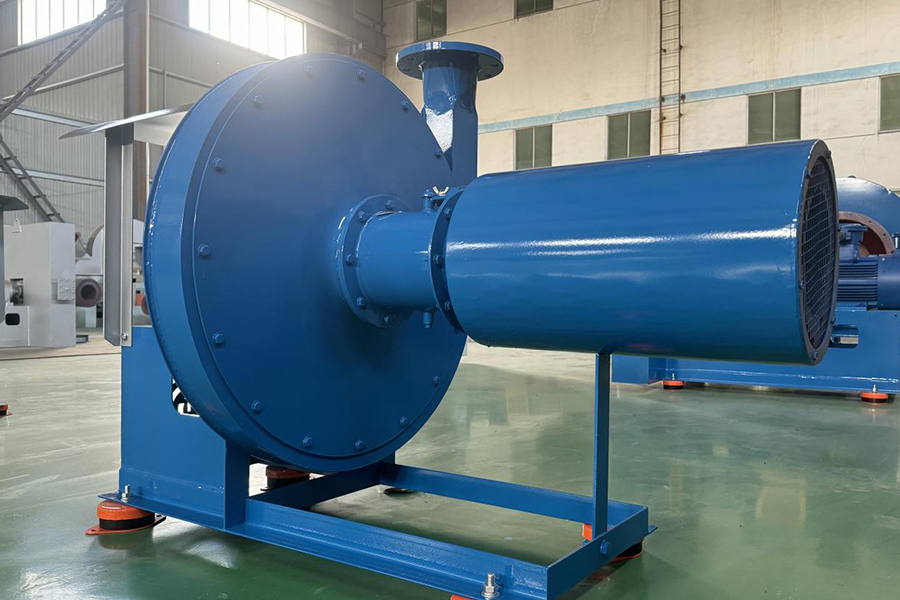

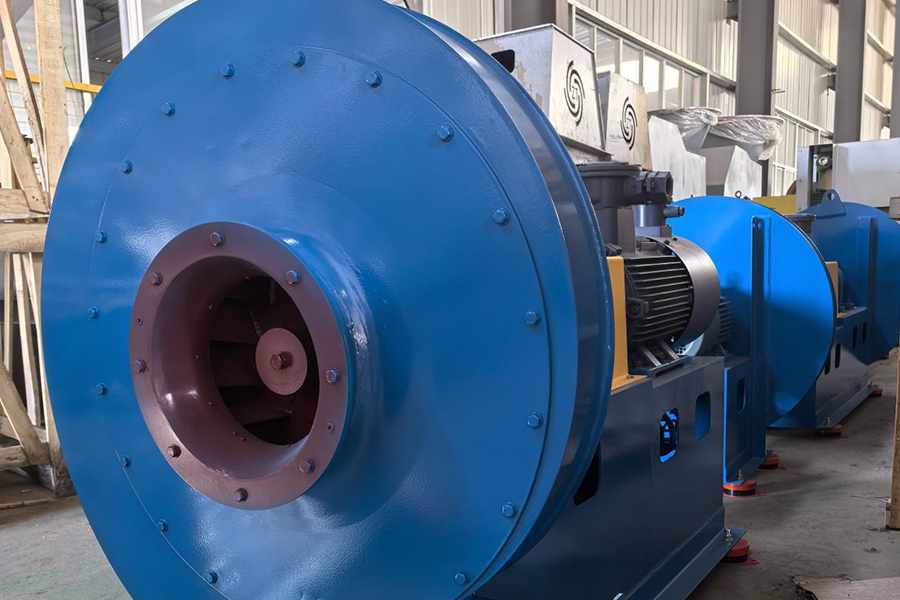

Actual picture

9-19 Series

Air volume range: 800-63,000 m³/h, air pressure: 3,000-15,000 Pa, power: 2.2-400 kW, medium temperature: 20°C, medium density: 1.2 kg/m³.

The 9-19 series high-pressure centrifugal blowers are generally used for air supply in forging furnaces, but can also be used for high-pressure air supply in other applications. The conveying medium should be non-corrosive, free of sticky substances, and contain no more than 150 mg/m³ of particulate matter.

Product Structure
Type A Direct motor connection, no bracket	Type A Direct motor connection	Type C Pulley drive	Type D Coupling drive

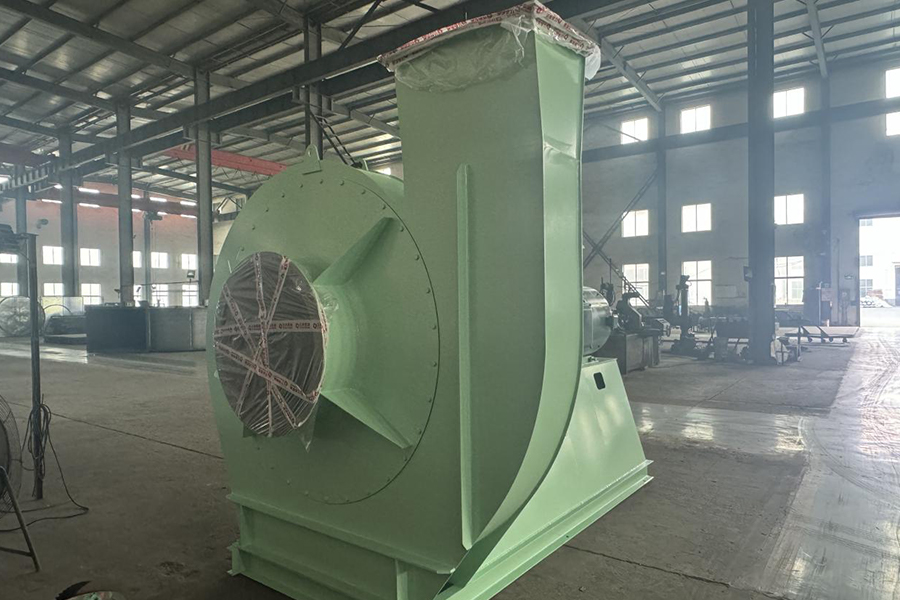

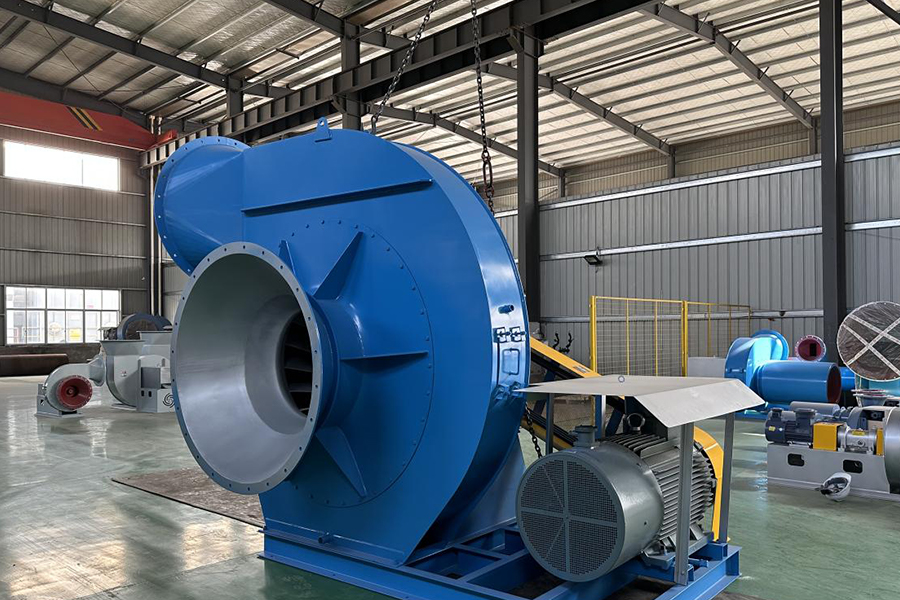

Actual picture

9-26 Series

Air volume range: 2,000 to 120,000 m³/h, air pressure: 3,500 to 16,000 Pa, power: 5.5 to 800 kW, medium temperature: 20°C, medium density: 1.2 kg/m³.

The 9-26 series high-pressure centrifugal blowers have similar applications to the 9-19 series and are generally used in forging furnaces and other applications requiring high-pressure air supply. Any blower can be selected as long as the air intake conditions and performance requirements match. The conveying medium should be non-corrosive, free of sticky substances, and contain no more than 150 mg/m³ of particulate matter.

Product Structure
Type A Direct motor connection, no bracket	Type A Direct motor connection	Type C Pulley drive	Type D Coupling drive

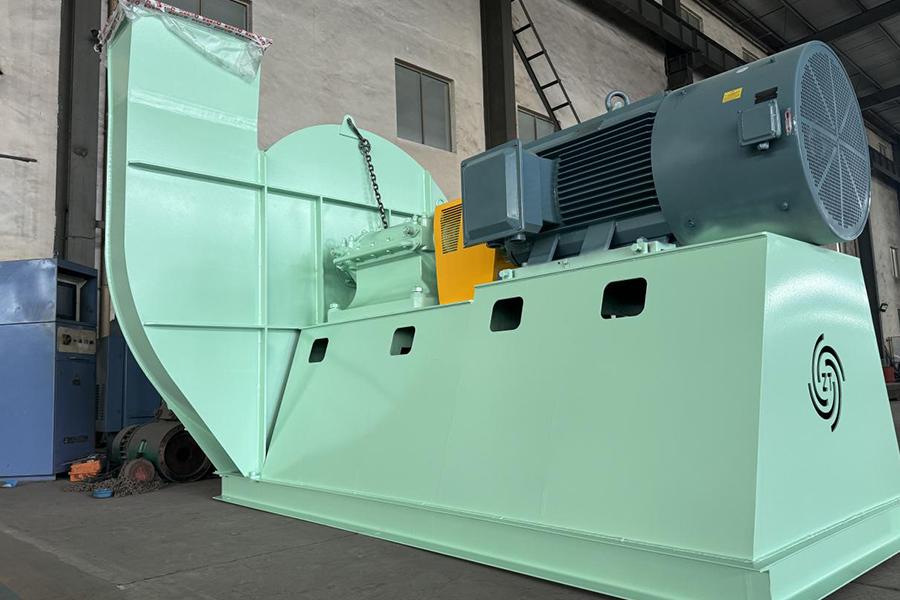

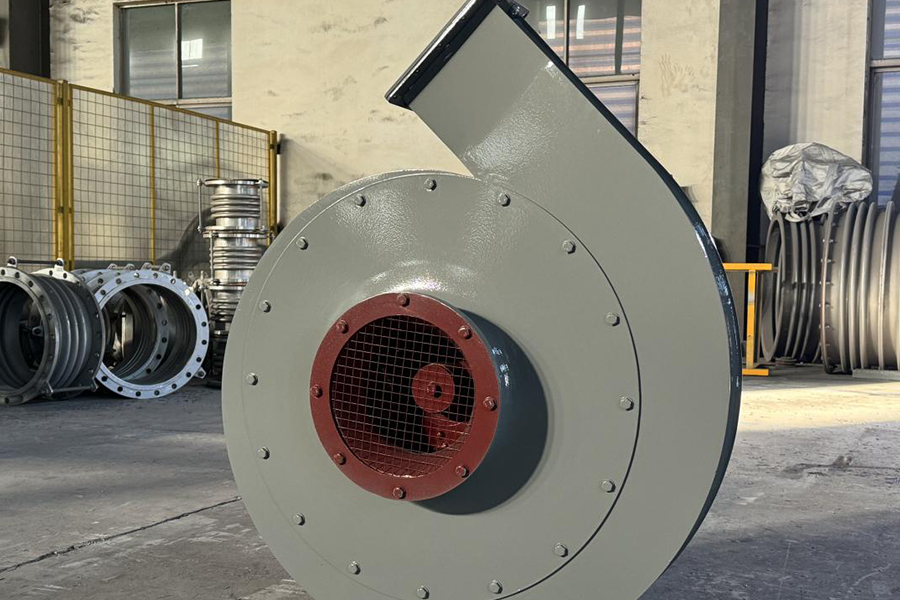

Actual picture

Q: What is the monthly supply capacity?

50-100 units

Q: Do you offer quality assurance?

During the warranty period, if there are any quality issues with the product, please contact us for replacement

Q: Can samples be ordered?

Yes

Q: How is your after-sales service?

Monday-Sunday，7:30-18:00，Long-time online after-sales service is worry-free

Q: How can I keep up with the product progress if I don't go to your company?

After placing an order, we will report the production progress regularly

Q: What information do I need to provide to get an accurate quotation?

The operating conditions for the gas to be delivered include flow rate (m3/h), total pressure (Pa), temperature (℃), gas density (kg/m3), and the altitude of the usage location (m); the material of the fan; the voltage, frequency, protection level, explosion-proof level, and whether the motor is variable frequency or not.

Q: Can your packaging ensure the safety of the product?

We wrap the inlet and outlet of the fan, as well as the motor, with stretch film and then secure the fan in a wooden box, which can fully protect the product during transportation and handling.

Q: How long is the warranty period for the product?

1 year
