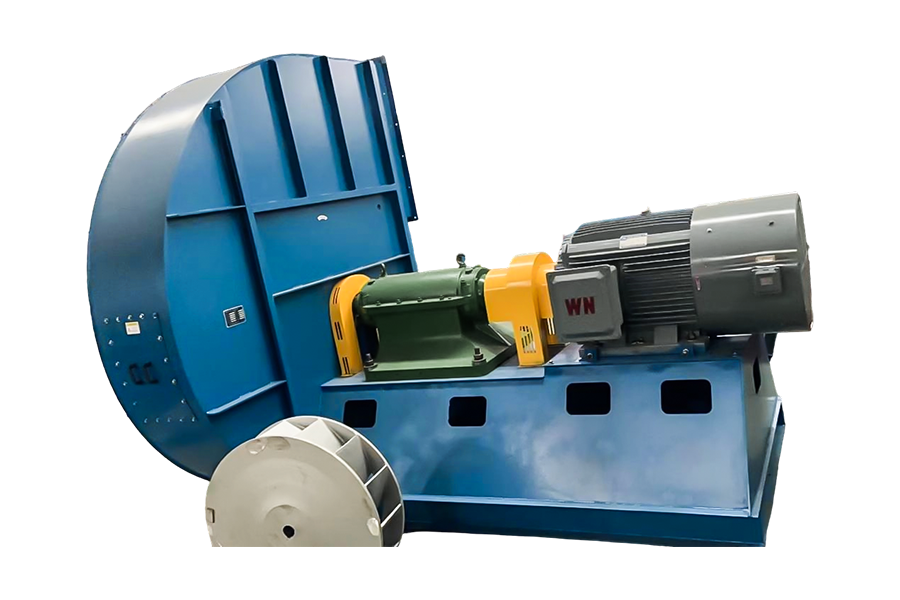

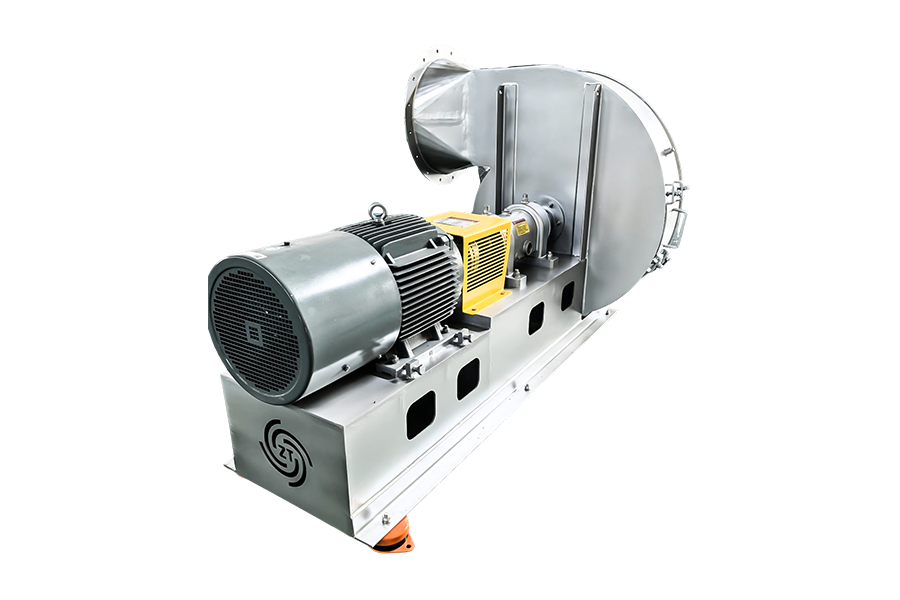

Y5-47 Series, Y5-48 Series, G/Y6-51 Series Medium-Pressure Centrifugal Fans

G6-51 Series

Air volume range: 11,000-660,000 m³/h, air pressure: 1,800-10,000 Pa, power: 15-2,000 kW, medium temperature: 20°C, medium density: 1.2 kg/m³.

Y6-51 Series

Air volume range: 11,000-660,000 m³/h, air pressure: 1,000-6,500 Pa, power: 11-1,400 kW, medium temperature: 200°C, medium density: 0.742 kg/m³.

The G/Y6-51 series centrifugal fans are primarily used in the air supply and exhaust systems of 2-670 t/h steam boilers in thermal power plants. They also meet the high-pressure requirements of fluidised bed furnaces. They can also be used in other applications where the air intake conditions are comparable and the performance is suitable. The maximum medium temperature does not exceed 250°C.

Product Structure

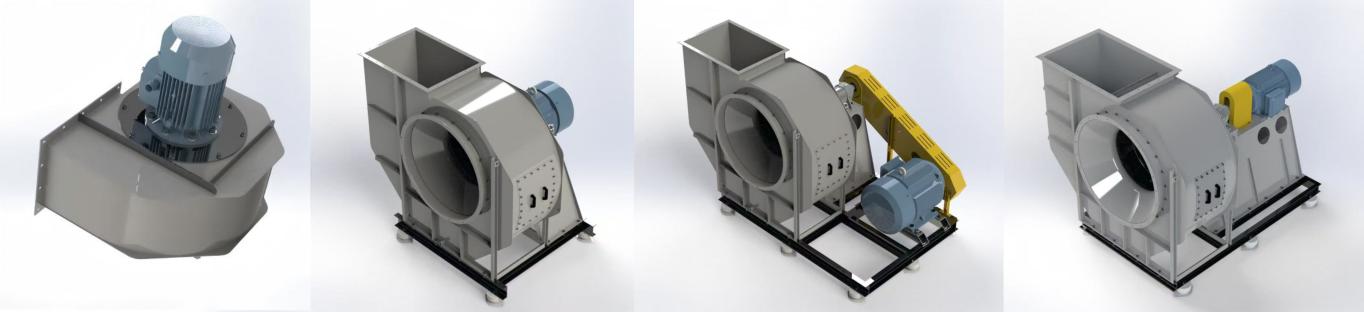

Type A Direct motor connection, no bracket	Type A Direct motor connection	Type C Pulley drive	Type D Coupling drive

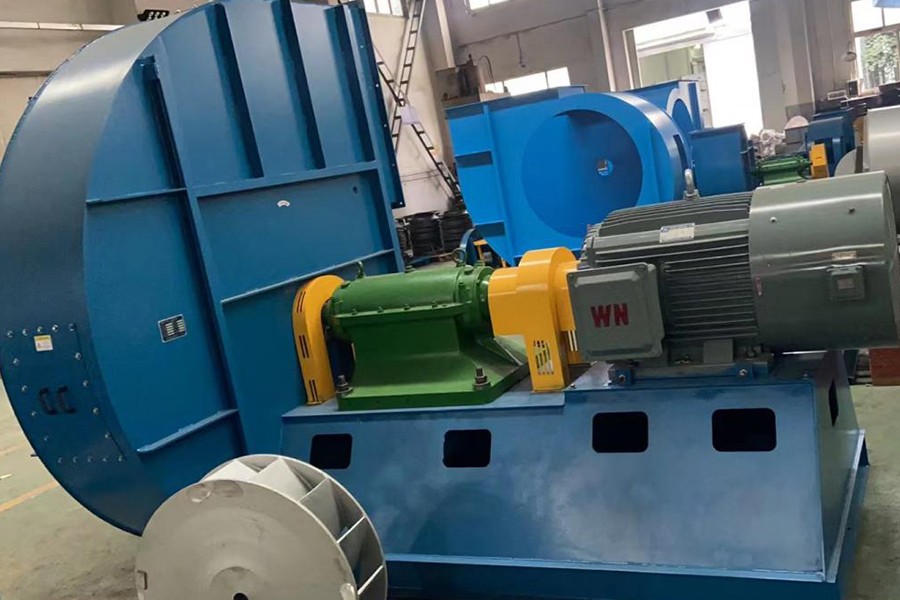

Actual picture

Y5-47 Series

Air volume range: 1000-2500 m³/h, air pressure 500-1000 Pa, power 1.5 kW, medium temperature: 250°C, medium density: 0.672 kg/m³.

Air volume range: 2400-65000 m³/h, air pressure 1000-3500 Pa, power 3-110 kW, medium temperature: 200°C, medium density: 0.742 kg/m³.

The Y5-47 series centrifugal fans are suitable for induced draft systems of 0.2-20 t/h industrial and domestic boilers and require smoke and dust removal devices. They can also be used in other applications where the air intake conditions are comparable and the performance is suitable. The maximum medium temperature does not exceed 250°C.

Product Structure

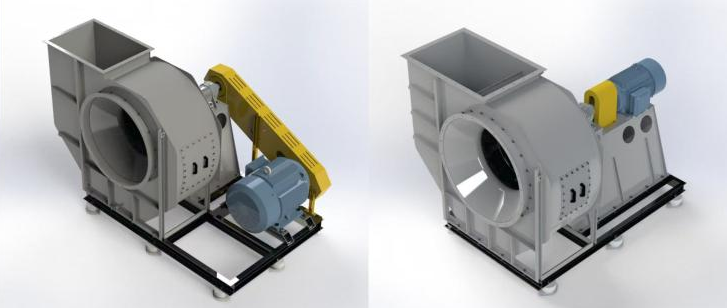

Type C Pulley drive	Type D Coupling drive

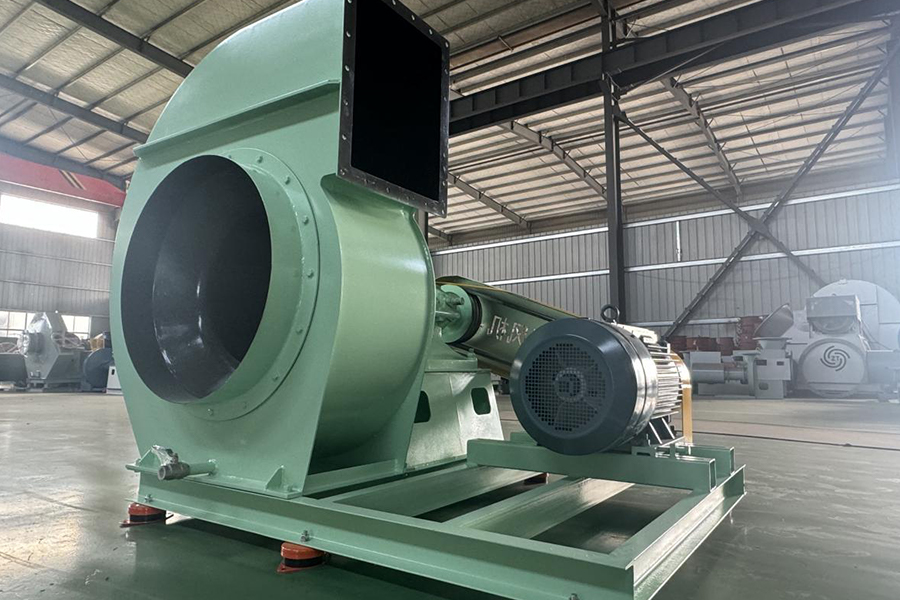

Actual picture

Y5-48 Series

Air volume range: 2000-17000 m³/h, air pressure: 700-3500 Pa, power: 2.2-22 kW, medium temperature: 200°C, medium density: 0.745 kg/m³.

Air volume range: 9500-65000 m³/h, air pressure: 1100-4000 Pa, power: 11-110 kW, medium temperature: 140°C, medium density: 0.85 kg/m³.

Similar to the Y5-47 series, the Y5-48 series centrifugal fans are suitable for induced draft systems in industrial and domestic boilers with a capacity of 1-20 t/h. They require smoke and dust removal devices. They can also be used in other applications where the air intake conditions are comparable and the performance is suitable. The maximum medium temperature does not exceed 250°C.

Product Structure
Type C Pulley drive	Type D Coupling drive
Actual picture

Q: What is the monthly supply capacity?

50-100 units

Q: Do you offer quality assurance?

During the warranty period, if there are any quality issues with the product, please contact us for replacement

Q: Can samples be ordered?

Yes

Q: How is your after-sales service?

Monday-Sunday，7:30-18:00，Long-time online after-sales service is worry-free

Q: How can I keep up with the product progress if I don't go to your company?

After placing an order, we will report the production progress regularly

Q: What information do I need to provide to get an accurate quotation?

The operating conditions for the gas to be delivered include flow rate (m3/h), total pressure (Pa), temperature (℃), gas density (kg/m3), and the altitude of the usage location (m); the material of the fan; the voltage, frequency, protection level, explosion-proof level, and whether the motor is variable frequency or not.

Q: Can your packaging ensure the safety of the product?

We wrap the inlet and outlet of the fan, as well as the motor, with stretch film and then secure the fan in a wooden box, which can fully protect the product during transportation and handling.

Q: How long is the warranty period for the product?

1 year
