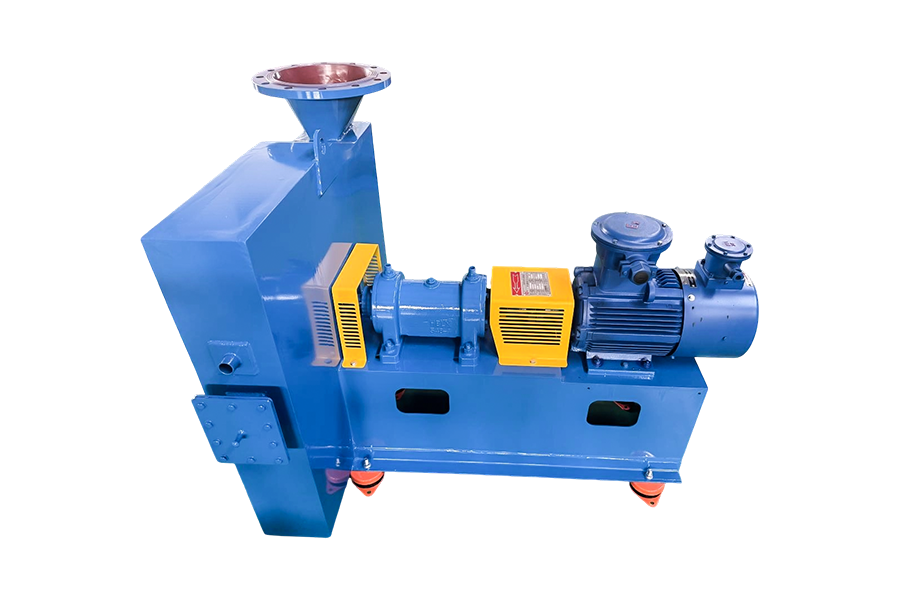

Environmental Protection Industry - Exhaust Gas Treatment System Purge Fan

Of the purge blower in the exhaust gas treatment system is to remove pollutants and protect the system, such as:

1. Regenerative Thermal Oxidizer (RTO) System

The purge fan injects clean air into the bottom of the regenerator, sweeping any remaining untreated exhaust gas from the switching process into the combustion chamber for thorough oxidation, thus preventing direct exhaust gas discharge and the resulting reduction in purification efficiency. During this process, the purge air pressure must be slightly higher than the exhaust gas inlet pressure (typically an increase of 1000 Pa) to effectively displace any remaining gas.

The purge fan operates in conjunction with the burner, main fan, and other equipment, executing a purge sequence during system startup or shutdown to reduce the risk of explosion from combustible accumulation. Its efficient purge also reduces heat loss and improves heat recovery efficiency.

2. Catalytic combustion exhaust gas treatment system

Pretreatment stage: The purge fan is used to remove residual particulate matter in the pipeline to prevent clogging of the subsequent catalytic bed.

Desorption stage: After the activated carbon is saturated with adsorption, the purge fan provides a hot air flow to desorb the organic matter and send it into the catalytic combustion chamber for decomposition.

System protection: Prevent coking on the catalyst surface by purging to maintain reaction efficiency.

3. VOCs control system

Adsorption concentration device: The purge fan blows organic matter out of the activated carbon during the desorption process and enters the catalytic combustion unit.

Pipeline anti-blocking: In the chemical, spraying, and other industries, purge fans prevent the VOCs exhaust pipes from being blocked by sticky substances.

Product Structure

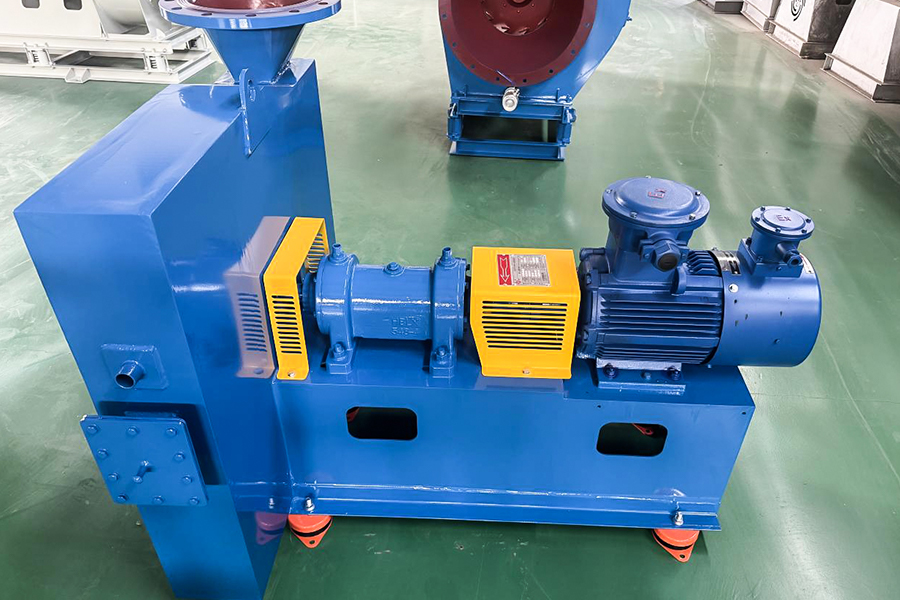

Actual picture

Q: What is the monthly supply capacity?

50-100 units

Q: Do you offer quality assurance?

During the warranty period, if there are any quality issues with the product, please contact us for replacement

Q: Can samples be ordered?

Yes

Q: How is your after-sales service?

Monday-Sunday，7:30-18:00，Long-time online after-sales service is worry-free

Q: How can I keep up with the product progress if I don't go to your company?

After placing an order, we will report the production progress regularly

Q: What information do I need to provide to get an accurate quotation?

The operating conditions for the gas to be delivered include flow rate (m3/h), total pressure (Pa), temperature (℃), gas density (kg/m3), and the altitude of the usage location (m); the material of the fan; the voltage, frequency, protection level, explosion-proof level, and whether the motor is variable frequency or not.

Q: Can your packaging ensure the safety of the product?

We wrap the inlet and outlet of the fan, as well as the motor, with stretch film and then secure the fan in a wooden box, which can fully protect the product during transportation and handling.

Q: How long is the warranty period for the product?

1 year
