Environmental Protection Industry - Exhaust Gas Treatment System Desorption Fan

The desorption fan is a key equipment in the adsorption-desorption catalytic combustion process, mainly used to achieve the regeneration of adsorption materials and exhaust gas concentration treatment.

1. Core Functions
1. Regeneration of adsorption materials
When the activated carbon/zeolite wheel reaches saturation, a desorption blower delivers 150-300°C hot air into the adsorption bed, desorbing organic matter from the adsorption material (with a desorption rate exceeding 90%) and restoring the material's adsorption capacity. For example, in paint exhaust treatment, desorption with 150°C hot air can recover over 90% of VOCs.

2. Exhaust gas concentration and transportation
The high-concentration exhaust gas generated by desorption (the concentration is increased by 10-20 times) is transported to the catalytic combustion device.

3. Thermal energy recycling
The high-temperature gas (300-500°C) after catalytic combustion is returned to the adsorption bed through the desorption fan, realizing the recycling of heat energy and reducing system energy consumption.

2. Typical Applications
Paint spraying industry: Treatment of exhaust gas containing benzene series, with exhaust gas concentration reaching 5,000 mg/m³ after desorption

Chemical industry: Recycling organic solvents, desorption fans require an explosion-proof design

Product Structure

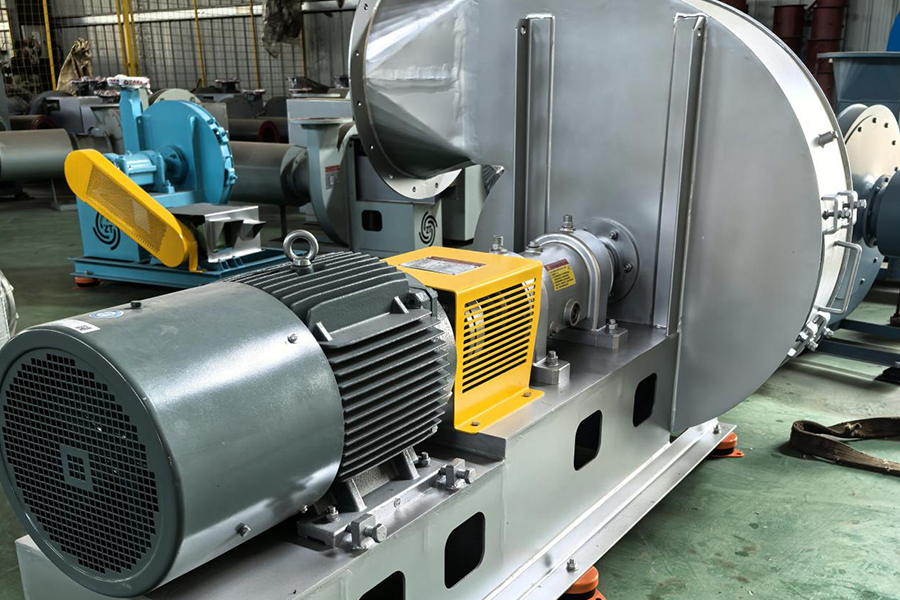

Actual picture

Q: What is the monthly supply capacity?

50-100 units

Q: Do you offer quality assurance?

During the warranty period, if there are any quality issues with the product, please contact us for replacement

Q: Can samples be ordered?

Yes

Q: How is your after-sales service?

Monday-Sunday，7:30-18:00，Long-time online after-sales service is worry-free

Q: How can I keep up with the product progress if I don't go to your company?

After placing an order, we will report the production progress regularly

Q: What information do I need to provide to get an accurate quotation?

The operating conditions for the gas to be delivered include flow rate (m3/h), total pressure (Pa), temperature (℃), gas density (kg/m3), and the altitude of the usage location (m); the material of the fan; the voltage, frequency, protection level, explosion-proof level, and whether the motor is variable frequency or not.

Q: Can your packaging ensure the safety of the product?

We wrap the inlet and outlet of the fan, as well as the motor, with stretch film and then secure the fan in a wooden box, which can fully protect the product during transportation and handling.

Q: How long is the warranty period for the product?

1 year
